Design for powder cosmetic . It applies to cosmetic, pharmacy, chemical industry, dyestuff, and plastic industries. The machine mixes the material quickly and equably under effective of homogenizing and stirring.
Dimension : | 2400x2200x1980mm |
Voltage : | AV380V,3P,50/60HZ |
Power : | 37KW,0~2840RPM |
Working pressure : |
Design for powder cosmetic . It applies to cosmetic, pharmacy, chemical industry, dyestuff, and plastic industries. The machine mixes the material quickly and equably under effective of homogenizing and stirring.

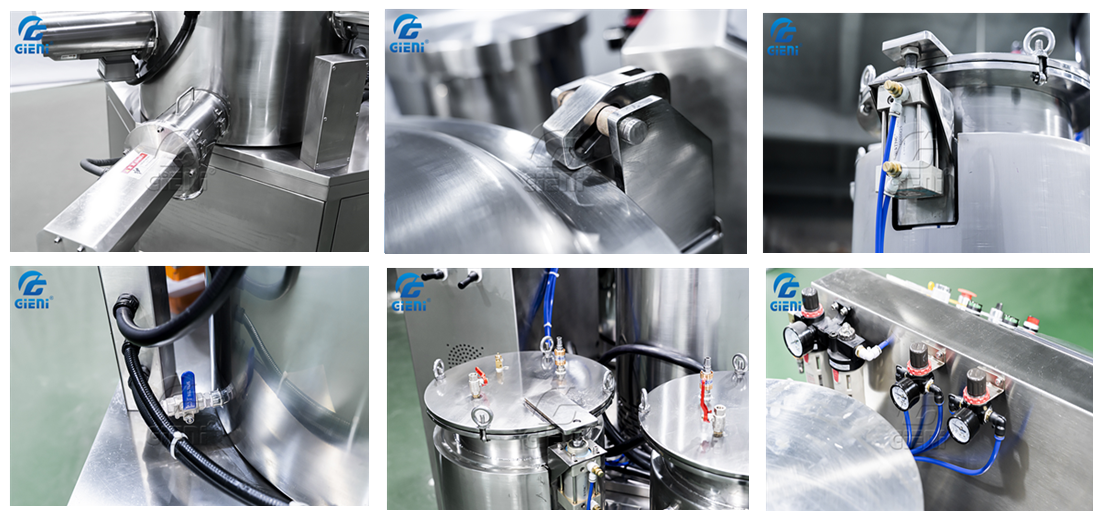

◆ mixing time is avaliable to set. It has auto powder discharging system, aslo the tank has safety switch for protection on the lid of the mixing tank.
◆ with new technology of pressure type oil spraying device, oil sprayed evenly and nearly no remaiin oil in pipe;
◆ dual-layer tank and with cooling, , oil tank material is SUS304, interior product contact layer is SUS316L;
◆ oil temperature adjustable; mixing time and mixing speed adjustable;
◆ cylinder driven, tank cover open automatically;
◆ CE certification provided.
◆ can mix 20kgs to 50kgs powder at a time.
Model | JY-CR200 | JY-CR100 | JY-CR50 | JY-CR30 |
Volume | 200L | 100L | 50L | 30L |
Capacity | 20~50KG | 10~25KG | 10kg | 5KGS |
Main motor power | 37KW, 0-2840 rpm | 18.5KW, 0-2840 rpm | 7.5 KW, 0-2840rpm | 4KW, 0-2840rpm |
Side powder | 2.2kW, 2840rpm | 2.2kW, 2840rpm | 2.2kW, 2840rpm | 2.2kW, 2840rpm |
Weight | 1500kg | 1200kg | 350kg | 250kg |
Dimension | 2400x2200x1980mm | 1900x1400x1600mm | 1500x900x1500mm | 980x800x1150mm |
Number of stirrer | Three shafts | Three shafts | One shafts | One shafts |
