JY-CR100 High Speed Powder Mixer (3RD GENERATION)

Designed for mixing powder, it is applied to cosmetic, pharmacy, chemical industry, dyestuff, and plastic industries,etc. The machine mixes the material quickly and equably under effective of homogenizing and stirring.

Dimension : 1900x1400x600mm
Voltage : AC380V, 3P, 2.2KW
Power : 18.5KW,0~2840 rpm
Working pressure :
Company:
Email:
Message:


Designed for mixing cosmetic powder, it can mix 10-25kgs at a time. It applies to cosmetic, pharmacy, chemical industry, dyestuff, and plastic industries. The machine mixes the material quickly and equably under effective of homogenizing and stirring.

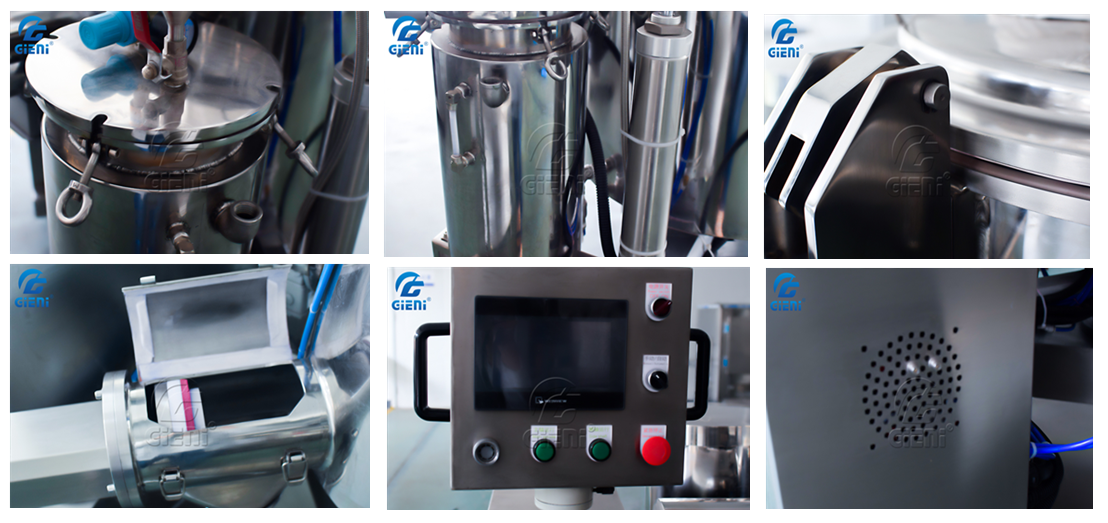

◆ Mixing time is avaliable to set. It has auto powder discharging system, aslo the tank has safety switch for protection on the lid of the mixing tank.

◆ with new technology of pressure type oil spraying device, oil sprayed evenly and nearly no remaiin oil in pipe;

◆ dual-layer tank and with cooling, , oil tank material is SUS304, interior product contact layer is SUS316L;

◆ oil temperature adjustable; mixing time and mixing speed adjustable;

◆ cylinder driven, tank cover open automatically;

◆ CE certification provided.

◆ can mix 10kgs to 25kgs at a time.

ModelJY3-CR100JY-CR50JY-CR30
Volume100L50L30L
Capacity1025KG10KG5KG
Main motor power18.5KW,02900 rpm7.5 KW,0-2840rpm4KW,0-2840rpm
Side powder2.2KW(3HP)2.2kW, 2840rpm2.2kW, 2840rpm
Weight1200kg350kg250kg
Dimension1900x1400x600mm1500x900x1500mm980x800x1150mm
Number of ShaftThree shaftsOne shaftOne shaft
