This machine is used for laboratory formula studying and testing for new products' character.
| Dimension : | 610x580x850mm (LxWxH) |
| Voltage : | AC380V(220V),3P,50/60HZ |
| Power : | 2.5KW |
| Working pressure : | 7 tons |
This machine is used for laboray formula studying and testing for new products' character.

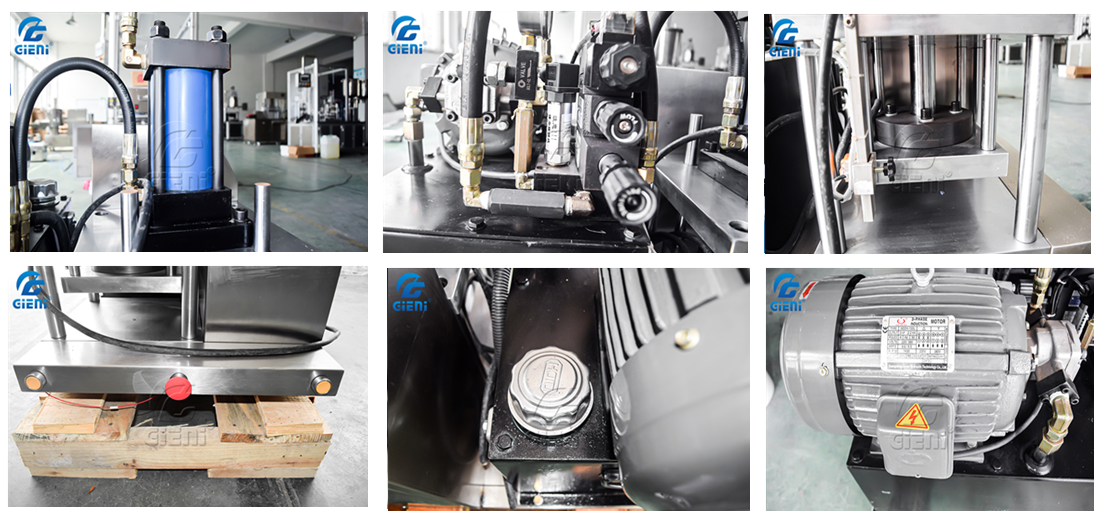

◆ full hydraulic drive system, more stable.
◆ PLC can store each powder formula according to different powders.
◆ double hands-on operation, safe and reliable.
◆ Can be used for small batch production, can be four cavities (according to aluminum plate size).
Type | Hydraulic type | Airdraulic |
| Model | HL | ZL |
| Max Pressure | 11tons | 5-8tons |
| Power | 2.2kw | 0.6kw |
| Voltage | AC380V/(220V),3P,50/60HZ | AC220V,1P,50/60HZ |
| Oil Cylinder Diameter | 150mm | 63mm/100mm |
| Effective Press Area | 200x200mm | 150x150mm |
| Outer Dimension | 61cmx58cmx85cm | 30cmx45cmx70cm |
| Weight | 110KGS | 80KGS |
