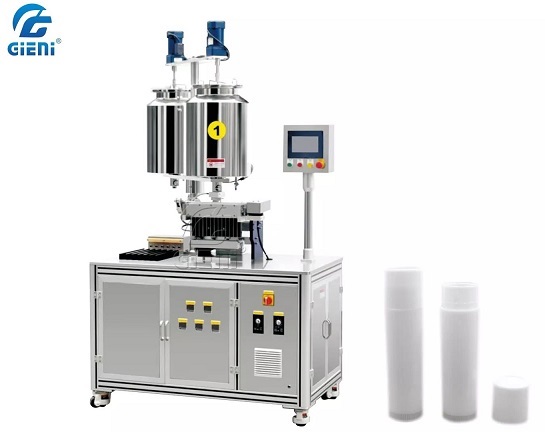

The machine is designed for kinds of lipstick, suitable filling for metal mold lipstick.
| Dimension : | 1300 x 1050 x 2200mm (L x W x H) |
| Voltage : | AC220V,1P,50/60HZ |
| Power : | 3.8KW |
| Working pressure : | 0.6~0.8Mpa,≥300L/min |
This machine combines with pre-heating tables and filling machine, which is suitable for fillingn metal mold lipsticks.
◆ 20L Heating tank adopts dual layer design. The temperature and stirring speed are adjustable.
◆ Fill 10 pcs each time with 10 nozzles.( can be switched into 12 nozzles)
◆ Piston filling system is driven by dervo motor with numerical control. Rotary valve is driven by air cylinder.
◆ Stirring device is driven by motor.
◆ Mold lifting function is driven by step motor and numerical control.
◆ Color human-machine touch panel interface and omnibearing numberical control.Operaion is easy and precise.
◆ Filling precision is ±0.1.
Model: | JLG-12 |
Outer dimension | 1300x1050x2200mm (L x W x H) |
Voltage | AC220V,1P,50/60HZ |
power | 3.8KW |
Air supply | 0.6~0.8Mpa,≥300L/min |
Output | A.Metal mold:2160-3600pcs/hour; B. Silicone mold:1800-3000pcs/hour |
Filling volume | 14ml |
Tank volume | 20L |
Weight | 260kg |
