JHF-6 Nozzles full automatic lip balm sunstick production line

JHF-6 is specially designed for the lip balm and sunstick products.

Dimension : 12000X1700X1890mm (LxWxH)
Voltage : AC220V,1P,50/60HZ
Power : 17KW
Working pressure : 0.6-0.8Mpa,≥800L/min
Company:
Email:
Message:

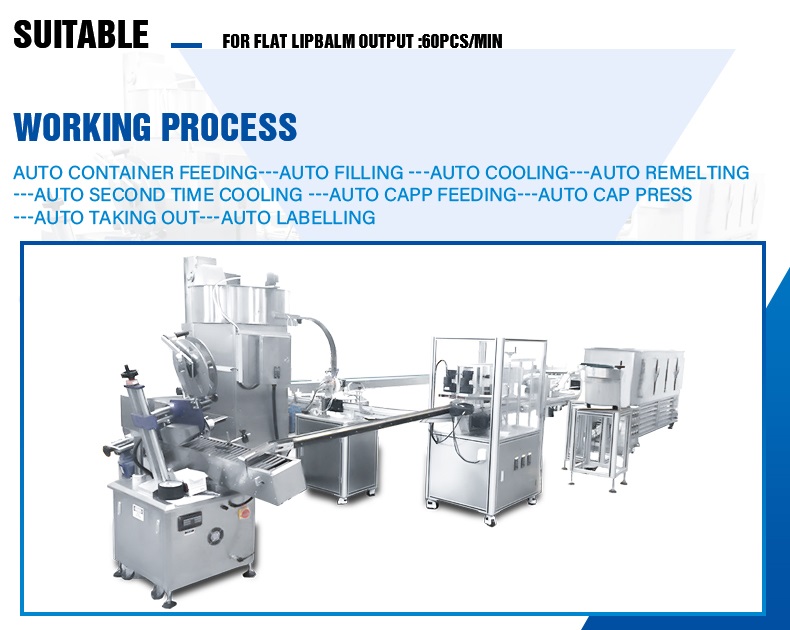

JHF-6 is specially designed for the lip balm and sunstick products. The machine has function of auto filling, cooling, re-melting, second cooling, second re-melting, auto cap loading, auto capping, auto finished product and container base separating (Reuse the container base)


◆ Adopt slate conveyor belt. Cleaning and changing is convenient.

◆ Fill 4~6pcs each time and filling precision can reach ±0.1g.

◆ Pump construction is easy for cleaning, convenient for change material.

◆ Adopts 5P to10P compressor on chilling tunnel.

◆ Operators:1-2 persons.



Full Automatic filling & Cooling line 60pcs/min (6 nozzles )

Model:

JHF

Outer dimension

12000X1700X1890mm (LxWxH)

Voltage

AC220V,1P,50/60HZ

Voltage of cooling tunnel

AC380V(220V),3P,50/60HZ

Power

17KW

Air supply

0.6-0.8Mpa,≥800L/min

Output

40-60pcs/min.(acc.to raw materials&mold quantity)

Weight

1200kg

Operator

2persons
