Application for JBC-5 Bottom Up Compact Powder Pressing Machine

JBC-5 Newly design is suitable for cosmetic powders,such as face powder,blusher and eyeshadow.

It can be use for handling a wide range of formulations.It can press embossed,engraved cakes and domes.

Features for JBC-5 Bottom Up Compact Powder Pressing Machine

◆ It is the update model of JBC/4,which gives the belov Mold size bigger which could hold 9 cavities 59mm pan.

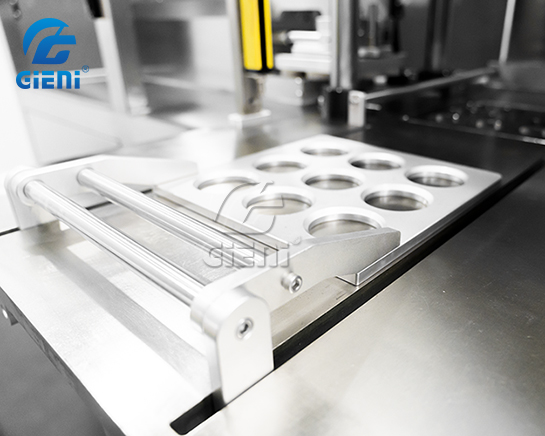

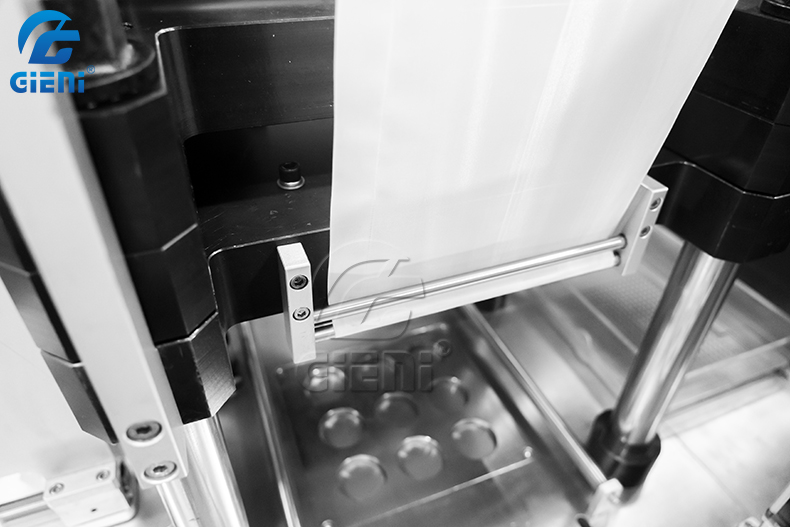

◆  Manual load pans and push plate into pressing area, pans are pushed inside bottom mold,then another plate come to tighten them.After pressing and demold it,the pans will be pushed out for dust remove and collection.

◆ One set press mold includes top, middle, and bottom which are installed inside the machine to reduce the wear loss;

◆ Pressing from bottom to top, oil pressure is adjustable to achieve good performance for the powder compacting.

◆ Extended safety sensor(Taiwan FOTEK) for protecting the operator.

◆ Adopting servo motor to control the filling volume,use PLC system, easy to operate.

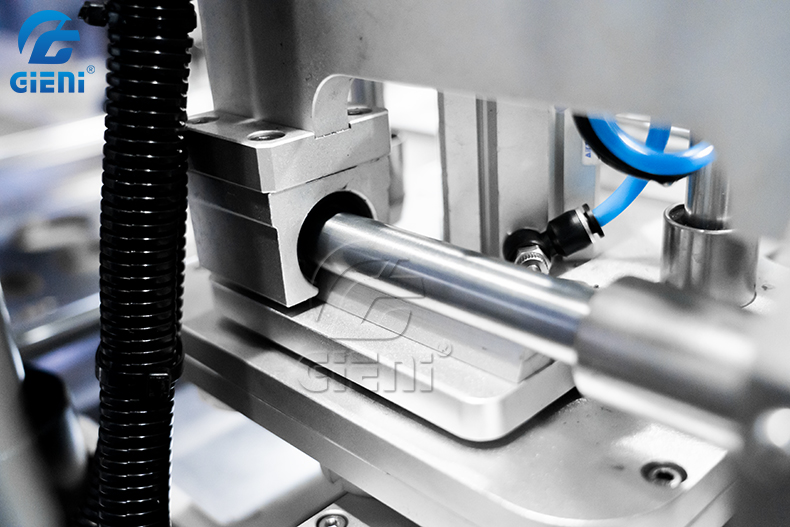

◆ Fully hydraulic driven system ensures perfectly stable running.

◆ Easy for color changing and cleaning.No need to remove the hopper, can achieve rapid production change.

◆ Powder feeding optional: automatic or manual.

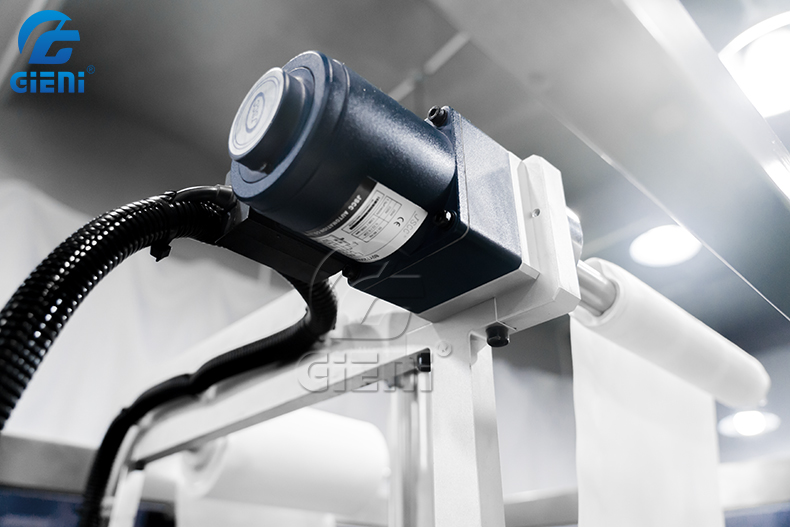

◆ The number of times of the powder feeding,powder pressing,cloth rolling, etc. can be adjusted on the touch screen.

◆ Add silicone seal in powder pusher, more clean tidy and can save powder.

◆Add a powder storage tank, more easy to collect remaining powder,convenient quick and clean.

Technical Parameters for JBC-5 Bottom Up Compact Powder Pressing Machine
