JMP Powder Pulverizer (2021 MODEL)

used for pulverizing those dry and brittle material in cosmetic,chemical,pharmacy,industries.

Dimension : 1300mm×800mm×1550mm
Voltage : 380V,3P,50/60HZ
Power : 7.5KW
Working pressure :
Company:
Email:
Message:


Application for Pulverizar:


It is specially used for pulverizing those dry and brittle material in cosmetic, chemical, pharmacy, industries.




Features for Pulverizar:


◆ It adopts rotary multi-hammer structure to hamming the powder material, which makes powder to be sheared off, scraped, scattered and pass through the mesh in high speed to achieve the requested fineness.

◆ Hammer chamber has cooling system, which effectively avoid the raw material from being thernak anaphylaxis.

◆ Auto screw type powder feeding, speed adjustable;
◆ Powder bucket is automatically lifted up and down,  convenient for powder discharge.

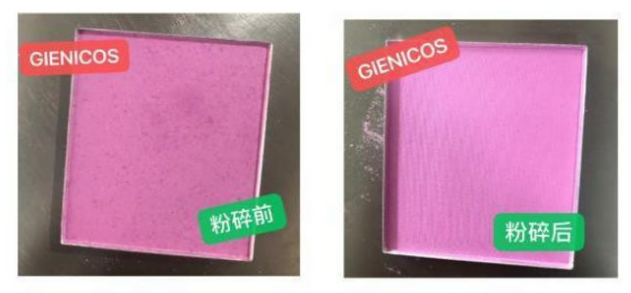

◆ Hammers rotate high speed ensures the powder material well homogenized after oil spraying. In this case, b
y using our pulverizer, the oil spot can be eliminated 99% and powders become softer when you touch it. Some people prefer crusher, but this is not workable on eliminating oil spots.

◆ use SIEMENZ motor, more table



Technical Parameters for Pulverizar:


Model:                                                                                 JMP08

Capacity
7.5KW, 20-50kgs/h
Power/Rotary Speed
7200RPM
Material InletScrew feeding, speed is adjustable
Hammer
8PCS
Crushing Motor7.5kw
Sieve Size1.0mm/1.5mm/2.0mm
Table Height800mm
VoltageAC380V,3P,50/60HZ
Weight400kgs
