Designed for mixing powder, it is applied to cosmetic, pharmacy, chemical industry, dyestuff, and plastic industries,etc. The machine mixes the material quickly and equably under effective of homogenizing and stirring.
Dimension : | 980x800x1150mm (LxWxH) |
Voltage : | AV380V,3P,50/60HZ |
Power : | 4KW,0-2840rpm |
Working pressure : |
Designed for powder cosmetic . It applies to cosmetic, pharmacy, chemical industry, dyestuff, and plastic industries. The machine mixes the material quickly and equably under effective of homogenizing and stirring.

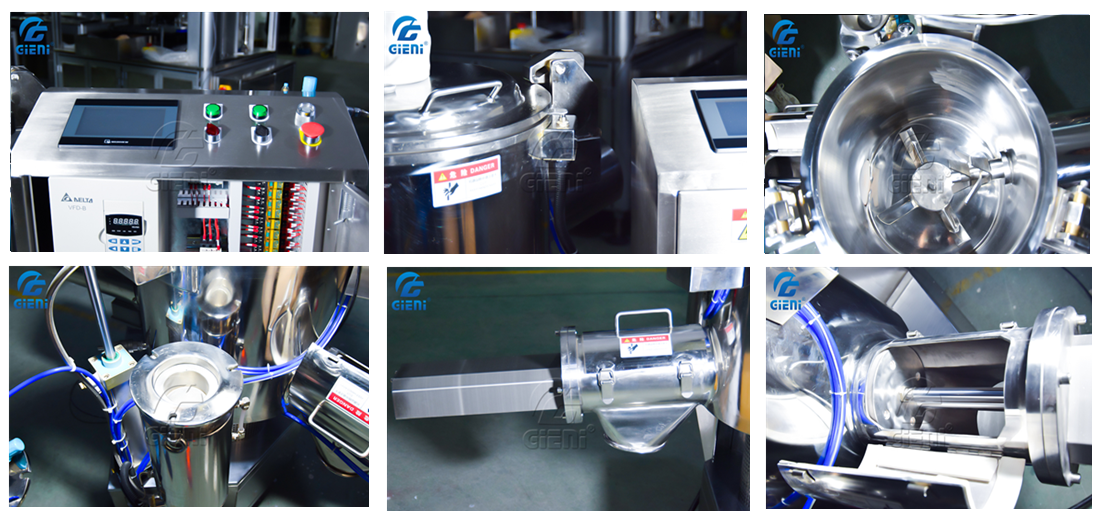

◆ Mixing time is avaliable to set. It has auto powder discharging system, aslo the tank has safety switch for protection on the lid of the mixing tank.
◆ with new technology of pressure type oil spraying device, oil sprayed evenly and nearly no remaiin oil in pipe;
◆ dual-layer tank and with cooling, , oil tank material is SUS304, interior product contact layer is SUS316L;
◆ oil temperature adjustable; mixing time and mixing speed adjustable;
◆ cylinder driven, tank cover open automatically;
◆ CE certification provided.
◆ can mix 5kgs powder at a time
Model | JY-CR200 | JY-CR100 | JY-CR50 | JY-CR30 |
Volume | 200L | 100L | 50L | 30L |
Capacity | 20~50KG | 10~25KG | 10kg | 5KGS |
Main motor power | 37KW, 0-2840 rpm | 18.5KW, 0-2840 rpm | 7.5 KW, 0-2840rpm | 4KW, 0-2840rpm |
Side powder | 2.2kW, 2840rpm | 2.2kW, 2840rpm | 2.2kW, 2840rpm | 2.2kW, 2840rpm |
Weight | 1500kg | 1200kg | 350kg | 250kg |
Dimension | 2400x2200x1980mm | 1900x1400x1600mm | 1500x900x1500mm | 980x800x1150mm |
Number of stirrer | Three shafts | Three shafts | One shafts | One shafts |
