The machine is especially for loose type powder products.This new model has automatic weigher which will reject unqualified products.
Dimension : | 670*660*1405mm(L*W*H) |
Voltage : | AC220V, 1P, 50/60HZ |
Power : | 0.4KW |
Working pressure : | 0.6~0.8Mpa, ≥300L/min |
The machine is especially for loose type products. It adopts different filling to aim at different manufacture requirements. The ration is precision, cleaning is convenient and operator is easy.This new model has automatic weigher and working platform.

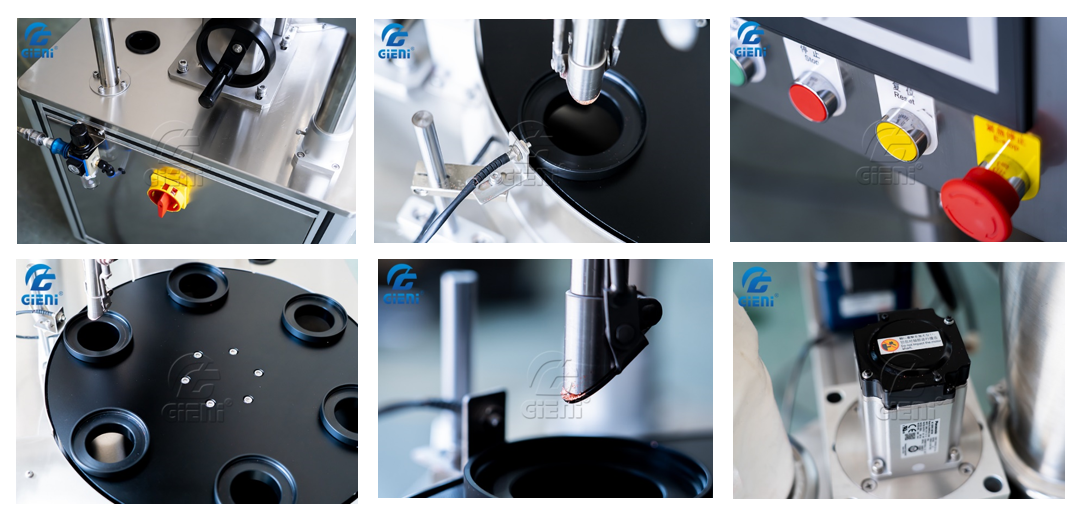

◆ It adopts screw feeding, with automatic calibration function.
◆ Screw feeding adopts servo motor driven, high precision control system.
◆ Weighing sensor adopts German Brand.
◆ Operation system adopts human-machine interface system;
◆ Rotary type is easy to operate.
Model | JLF-3 |
Outer dimension | 670*660*1405mm(L*W*H) |
Voltage | AC220V,1P,50/60HZ |
Power | 0.4 KW |
Air supply | 0.6-0.8Mpa |
Output | 900-1800 psc/hour |
Tank volume | 26L(customization) |
Weight | 220kg |
