JYF-A is used for filling different viscosity materials and suitable for different sizes of vessel such as eyeshadow cream,lipgloss,lipstick,lip oil.
Dimension : | 46x77x166cm |
Voltage : | AC220V,1P,50/60HZ |
Power : | 3KW |
Working pressure : | 0.6~0.8Mpa,≥300L/min |
JYF-A is used for filling different viscosity materials and suitable for different sizes of vessel such as eyeshadow cream,lipgloss,lipstick,lip oil.

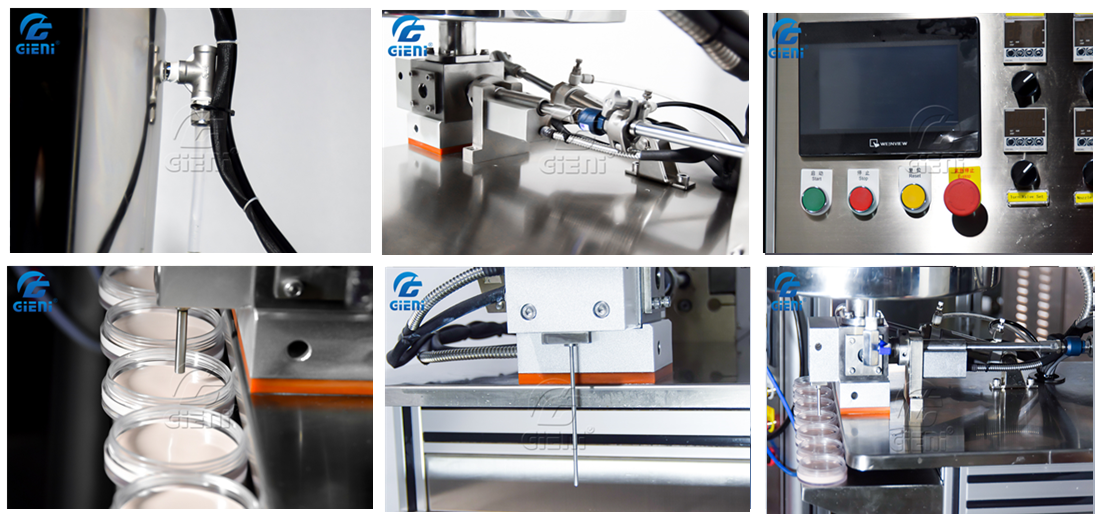

◆ 20L double layer or three layer jacket, it has stirring and heating function, also has the function for press filling (cold fill) which is suitable for mascara product.
◆ Driven by servo motor, with air cylinder driven exchange system
◆ Filling volume and stirring speed are adjustable
◆ Doseing precision ±0.2g
◆ East to clean and operate
◆ Applicable to wide range of containers(tube, case, bottle, plate, etc)
◆ Two filling types: ①Automatic filling continuously. ②Semi-auto filling by foot switch.
Dimension | 46x77x160cm |
---|---|
Voltage | AC220V,1P.50/60HZ |
Power | 3kw |
Filling Volume | 2-14ml |
Production Capacity | 10-30pcs/min(manual filling),20-40pcs/min(auto filling) |
Operator | 1 Person |
