12 nozzles high-speed mascara filling and capping production line

12 nozzles high-speed mascara filling and capping production line

Dimension : 300x120x230cm
Voltage : 220V
Power : 10KW
Working pressure : 0.5-0.8mpa
Company:
Email:
Message:


This machine is widely used for filling mascara products. It can work with automatic inner wiper feeding to effect output.

♦ 20L tank made of SUS304, sanitary materials.


♦ Piston filling system driven by motor, accuracy filling.


♦ Filling 12 pcs each time.


♦ Filling model is able to select static filling or filling while falling.

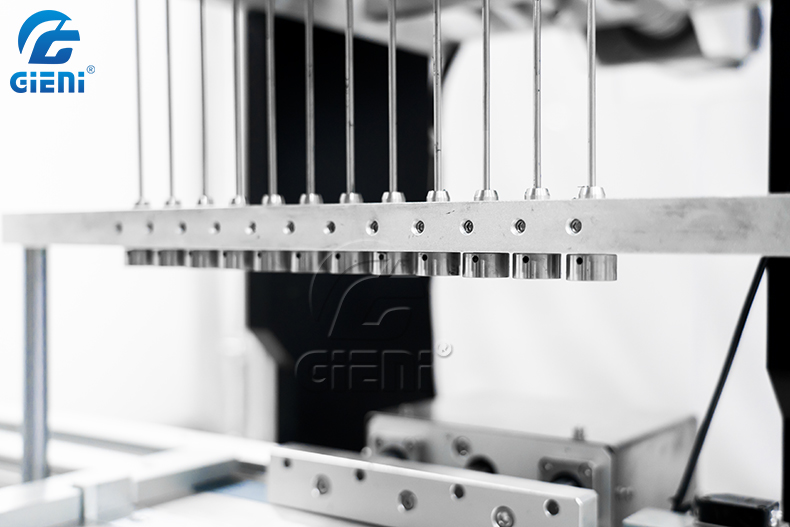

♦ Filling nozzle with return function, reducing pollution for bottle mouth.


♦ Material tank with mixing device.


♦ With container detecting system, no container, no filling.

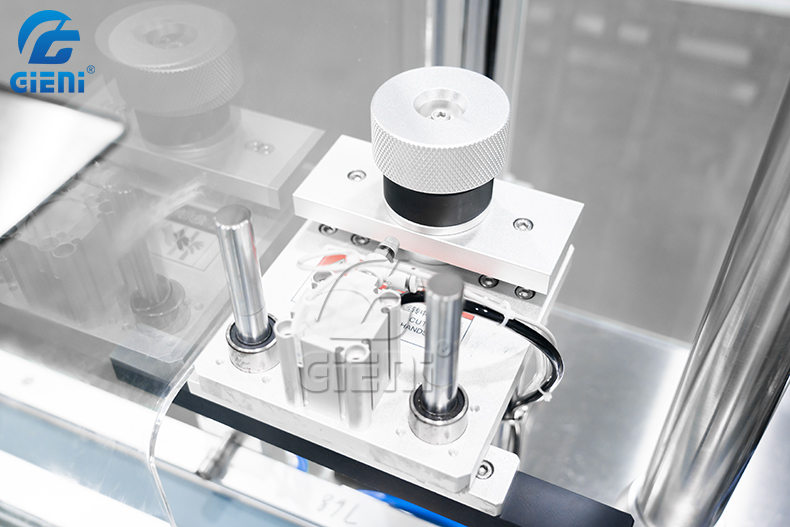

♦ With servo capping system, all parameters such as torque, speed are set on


   touch screen.


♦ Jaws of capping is adjustable according to the height of the container, but also by

   the shape of the cap to do.

ApplicationMascara
Filling capacity12 pcs/min
Filling accuracy±0.1%
Warranty12 months
ProcessingFilling+capping
Dimension(L*W*H)300x120x230cm
