JHF is specially designed for the lip balm and sunstick products.
| Dimension : | 12000X1700X1890mm (LxWxH) |
| Voltage : | AC220V,1P,50/60HZ |
| Power : | 17KW |
| Working pressure : | 0.6-0.8Mpa,≥800L/min |

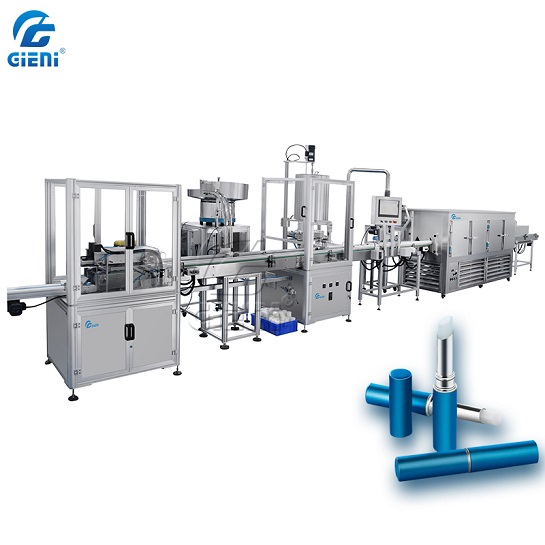

JHF is specially designed for the lip balm and sunstick products. The machine has function of auto filling, cooling, re-melting, second cooling, second re-melting, auto cap loading, auto capping, auto finished product and container base separating (Reuse the container base)
l Adopt slate conveyor belt. Cleaning and changing is convenient.
l Fill 4~6pcs each time and filling precision can reach ±0.1g.
l Pump construction is easy for cleaning, convenient for change material.
l Adopts 5P to10P compressor on chilling tunnel.
l Operators:1-2 persons.
Full Automatic Filling &cooling line (4 nozzles) | |
Model: | JHF |
Outer dimension | 12000X1700X1890mm (LxWxH) |
Voltage | AC220V,1P,50/60HZ |
Voltage of cooling tunnel | AC380V(220V),3P,50/60HZ |
Power | 17KW |
Air supply | 0.6-0.8Mpa,≥800L/min |
Output | 40-60pcs/min.(acc.to raw materials&mold quantity) |
Weight | 1200kg |
Operator | 2persons |
