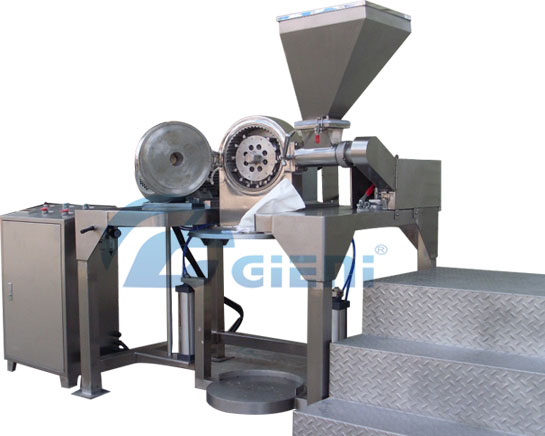

JMP12 Powder Pulverizer

It is used for crushing those dry and brittle material in cosmetic, chemical, pharmacy, and food industry.

Dimension : 1200mm×1000mm×1650mm
Voltage : 220V
Power : 7.5KW
Working pressure :
Company:
Email:
Message:


It is specially used for pulverizing those dry and brittle material in cosmetic, chemical, pharmacy, industries.



1.It adopts rotary multi-hammer to hammer the powder material, which makes powder is sheared off, scraped, scattered and pass through the mesh in high speed to achieve the requested fineness.


2.The structure is simple and precision, small footprint and easy to clean.


3.Due to the huge heat caused during pulverizing, the machine has water cooling device to prevent some of material from thermal anaphylaxis. It will release heat out of machine body by water-circulation and keep temperature at a suitable degree inside.


4.Comparing with general pulverizer, it adopts screw feeder to put raw material into the rotating crusher. Under high-speed revolution, special crush mechanism can get better homogeneity and emulsification after spraying the olil. It can avoid oil spot at the surface of powder cake and make sure its softness.


Dimension1200*1000*1650mm
Capacity30-60KG/H
Rotary Speed7200RPM
Material inletScrew feeding, speed is adjustable
  Hammer12PCS
Crushing motor7.5KW
