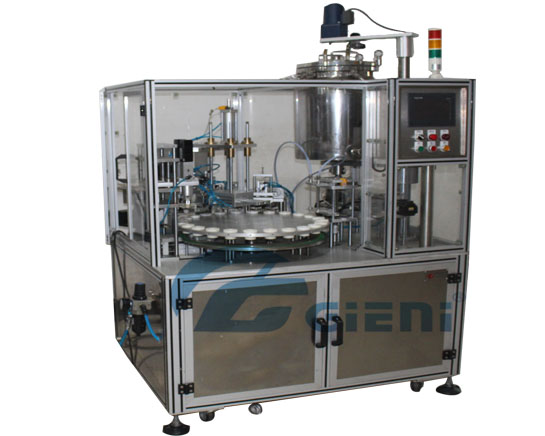

JRM Semi-Auto Rotary Mascara Filling Machine

JRM is a kind of automatic filling machine for masacara and lipgloss.The process section is including auto filling, steel ball inserting, blush inserting and capping device.

Dimension : 120x80x208cm
Voltage :
Power : 1PH, AC220V, 60HZ
Working pressure :
Company:
Email:
Message:


JRM is a kind of automatic filling machine for masacara and lipgloss.The process section is including auto filling, steel ball inserting, blush inserting and capping device.


See detailed process as following

Manual packaging putting->Auto Filling->Auto steel ball inserting->Manual blush feeding to vibration hopper->Auto brush inserting->Auto capping->Auto push finished product to conveyor->Auto transfer to weigh checker->Auto weigh checking


1.With Auto steel ball input,steel ball checking,auto blush inserting,and capping function.Also it has option on pragram to set functions.

2.Mateial bucket is 15 L, with heating, mixing, and pressuring functions

3.This machine is adopted pistion filling system.filling parameteris ableto set on touch screen.

4. This machine is made of servo motor driven, matiela sucking,lifting and capping system

5. Steel ball and brush are fed through vibration table

6.With weigh checking device to remove over weight products and not enough product.


Dimension120x80x208cm
Power1PH, AC220V, 60HZ
Air compressed pressure consumption5~6 kg/㎝2
Cleaning time30 min
Output24~30pcs/min
Min.Batch capacity5KG
