JY-CR50 High Speed Powder Mixer (3RD GENERATION)

Designed for mixing powder, it is applied to cosmetic, pharmacy, chemical industry, dyestuff, and plastic industries,etc. The machine mixes the material quickly and equably under effective of homogenizing and stirring.

Dimension : 1500x900x1500mm
Voltage : AV380V,3P,50/60HZ
Power : main motor power: 7.5KW (0-2840RPM) side power: 2.2KW, 2840RPM
Working pressure :
Company:
Email:
Message:

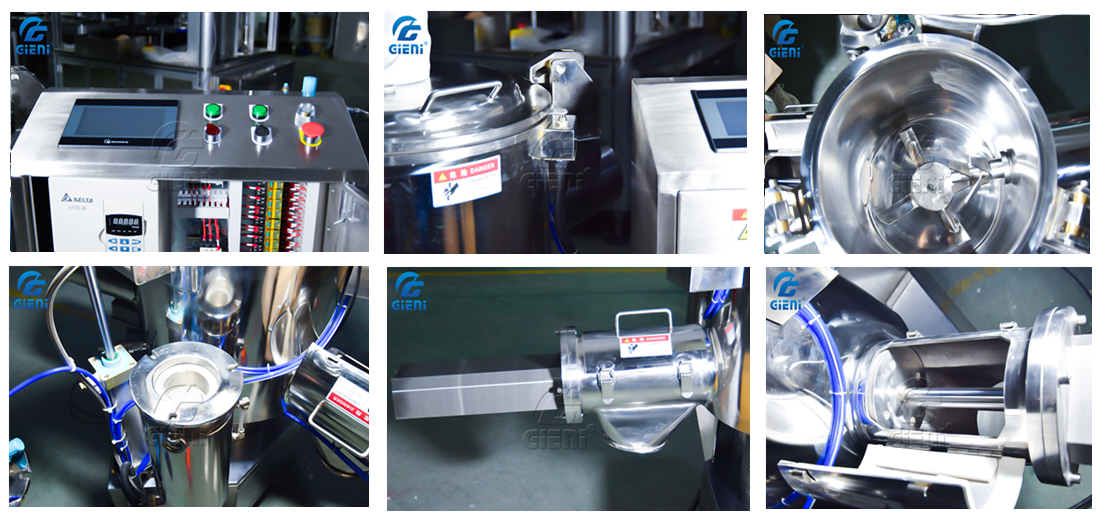

Designed for powder cosmetic . It applies to cosmetic, pharmacy, chemical industry, dyestuff, and plastic industries. The machine mixes the material quickly and equably under effective of homogenizing and stirring.


◆ Mixing time is avaliable to set. It has auto powder discharging system, aslo the tank has safety switch for protection on the lid of the mixing tank.

◆ with new technology of pressure type oil spraying device, oil sprayed evenly and nearly no remaiin oil in pipe;

◆ dual-layer tank and with cooling, , oil tank material is SUS304, interior product contact layer is SUS316L;

◆ oil temperature adjustable; mixing time and mixing speed adjustable;

◆ cylinder driven, tank cover open automatically;

◆ CE certification provided.

Model

JY-CR200

JY-CR100

JY-CR50

JY-CR30

Volume

200L

100L

50L

30L

Capacity

20~50KG

10~25KG

10kg

5KGS

Main motor power

37KW,                   0-2840 rpm

18.5KW,               0-2840 rpm

7.5 KW,

0-2840rpm

4KW,

0-2840rpm

Side powder

2.2kW, 2840rpm

2.2kW, 2840rpm

2.2kW, 2840rpm

2.2kW, 2840rpm

Weight

1500kg

1200kg

350kg

250kg

Dimension

2400x2200x1980mm

1900x1400x1600mm

1500x900x1500mm

980x800x1150mm

Number of stirrer

Three shafts

Three shafts

One shafts

One shafts
