Automatic Cosmetic Mascara / Nail Polish Filling Machine

This machine is used for filling mascara, lipgloss, foundation liquid and other cosmetic products

Dimension : 1800*1700*2450mm(paking size)
Voltage : AV220V
Power : 2KW
Working pressure : 0.6-0.8Mpa
Company:
Email:
Message:


This machine is used for filling mascara, lipgloss, foundation liquid and other



cosmetic products. It adopts cam type quantitative filling, tank is designed with



pressuring system for mascara product, easy to operate and clean.


This machine includes auto container in feed, auto container detecting (no



container no filling),auto filling, auto wiper in feed, auto brush in feed. Strictly meets



GMP standard.

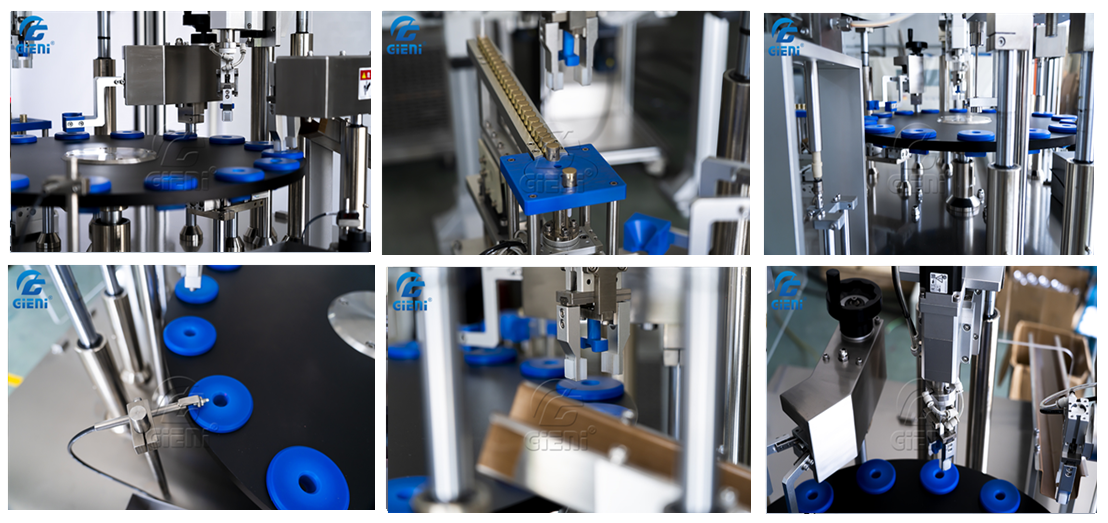

1. With functions of tube detection, auto tube loading, auto filling, wipers sorting, auto wipers


 feeding, wipers detection, auto wipers pressing, auto brush cap feeding, brush cap detection,


 auto capping and finished product discharging.


2.The rotary table with magnetic cups on it which is easy for replacing.


3. Cam type filling system is more stable and quick.


4.Tank has the functions of stirring, pressuring, heating and heat preservation.


5.The application of the manipulator to grasp tube, wiper and brush cap ensures the stability


of the whole machine.


6. Servo capping can prevent the cap from scratching, the torque can be adjusted easily.


ModelJQR-02M/L
Outer Dimension1800*1700*2450MM
VoltageAC220V
Power2kw
Filling Speed40-45 pcs/min
Weight

1000kg
